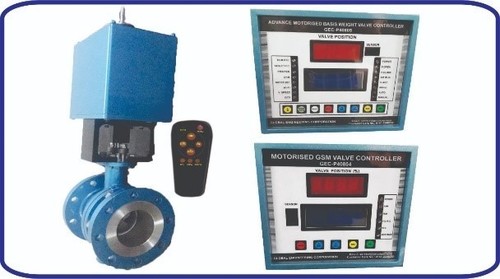

Send InquiryBasis Weight Control Valve
Price 150000.00 INR/ Unit
Basis Weight Control Valve Specification
- Mounting Type
- Free Stand
- Equipment Type
- Basis Weight Control Valve
- Display Type
- LED
- Operate Method
- Semi Auto
- Accuracy
- 100 %
- Power Supply
- Electric
- Features
- Efficient
- Application
- Lab
- Control Mode
- Manual
Basis Weight Control Valve Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 20 Units Per Week
- Delivery Time
- 4 Week
- Main Domestic Market
- All India
About Basis Weight Control Valve
Microprocessor based Motorized Basis weight valve / GSM control valve helps us to control Grammage with time saving to maintain GSM & grade changes in duly manufacturing of paper. Specification: Valve body: Type of construction: V Notch Size: 80mm to 200 mm Body material: SS 316 Actuator: aluminum/ Brass/ SS/ cast iron Resolution Step: 50,000 Output torque: 200Nm 500Nm Gear ratio: 1-150(min) 1-500(max) Motor supply: 220 V/ 50Hz Valve controller: Display: 0-100% Input signal: Pulses /4-20mA Pulse width: 5 per milli sec Least count: 0.1 Output accuracy: 0.015% Power supply: 220 VAC Drive out: 220 VACDESCRIPTION:
Motorised Basis Weight Valve is designed to control GSM variation to increase production.
SALIENT FEATURES:
V-Notch design shears the Pulp fibres to ensure no dragging stock between Ball & Ball seat.
V-Notch offers % characteristics for precise control.
Flanged body design & easy installation.
A wall mounted unit with Auto/Manual Selector switch, Open/Close Push buttons for manual operation & Digital Valve position Indicator.
Electro- Mechanical Actuator, V-Notch Segment Ball Valve with a built in valve positioner
Actuator with low backslash gearing and low speed.
Precise control improves productivity in terms of quality & quantity with feedback of 1/10th seconds.
TECHNICAL SPECIFICATION:
| DIMENSIONS AND WEIGHTS: | DELIVERY CONTENT : | ||||
| Box for Transport: 410 x 510 x 645 mm (W*D*H) Weight Net/Gross: 78 kg / 96 kg |
|
| (1) V-Notch Ball Valve | ||||
| Construction: | S.S. 316 | Type: | SHEARSTREAM | |
| Flow Coefficient (CV) : | 180-8510 (100% opening) | Ball Material : | Chrome Plated S.S. 316 | |
| Standard Temperature: | Ambient | Packing Material : | PTFE 'V' Ring | |
| Working Pressure : | 4.0 Kg/cm2 | Ball Pressure Class : | 150-300 | |
| (2) Electro Mechanical Actuator | ||||
| Linear Actuator Type valve & Size: | 2 / 3 /4 /5 /6 /8 /10 /12 | Supply Voltage : | 230 Volt AC | |
| Output Torque: | 120 Nm | Input Signal : | 230 Volt AC Pulse Input | |
| Operating Time : | 280 Sec./90o | Rating : | 3.14 W | |
| Closing Time : | 280 Sec./90o | Class of Insulation : | 134 | |
| Degree of Protection : | IP-55 | Resolution : | 35,000 Steps | |
| Standard Pulse Width : | 0.008 Sec. | Motor Type : | Non Blocking | |
| (3) Electronic Controller | ||||
| Power Supply: | 220 V, 50 Hz | |||
| Connector: | With Screw Terminals | |||
| Feedback Output: | 4-20 Ma | |||
| Precision: | 3 digit display | |||
| Load/Feedback: | 500 Q Max. | |||
| Control: | Hand / Automatic Selector Push Button | |||
