Send InquiryBox Compression Tester
Price 225000.00 INR/ Unit
Box Compression Tester Specification
- Application
- Industrial
- Color
- Blue
- Product Type
- Testing Equipment
- Power Supply
- Electric
- Machine Weight
- 750 Kilograms (kg)
Box Compression Tester Trade Information
- Minimum Order Quantity
- 1 Set
- Payment Terms
- Cash Advance (CA)
- Supply Ability
- 20 Sets Per Week
- Delivery Time
- 4 Week
- Main Domestic Market
- All India
About Box Compression Tester
DESCRIPTION:

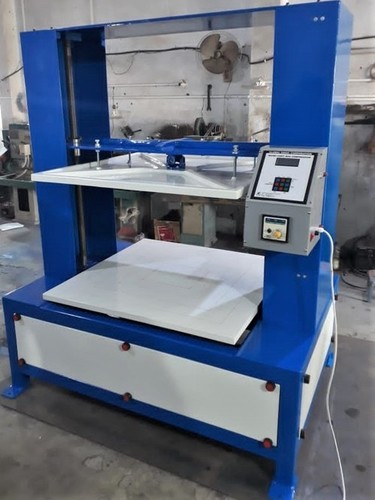

Box Compression Tester is a heavy-duty tester designed to determine the ability of Corrugated or Solid fiber shipping containers to resist external compressive forces during transit & storage. Boxes can be tested to complete collapse or held automatically at a predetermined load for a given period to evaluate stacking loads. A recording device is incorporated to indicate the force and deformation (deflection) required to compress the container between two flat platens.
It is usually desirable to test the empty shipping container before filling of material to study of compressive resistance. This information used to provide an indication of the load that a particular container may be able to withstand in service. It may also be used to compare the compression characteristics of boxes differing in design or construction.
Box Compression Test also serves as a useful index of overall quality of the material and workmanship of the box.
SALIENT FEATURES:
Direct Digital Readout of Compression Strength in 4 digits with peak hold facility.
Sophisticated electronic controls for precision & easy operation with switch for emergency stop.
Complete with memory for retaining peak value,
automatic or normal zero setting, overload and over travel protection facilities.
Auto Calibration in simple steps with easy to use
TECHNICAL SPECIFICATION:
| Capacity : | 0-1000 kgs |
| Test Speed : | 5 to 50 mm/min |
| Standard Press Platens : | 2 Parallel (One fixed and one movable with load cell) |
| Admit between plates : | 25mm ~ 1100mm |
| Accuracy : | 1% of reading |
| Power Supply / Power Requirement : | 3 phase, 440 volts, 50 Htz / 1 kW |
| APPLICABLE STANDARDS :
| OPTION: As per Customer requirement | ||||||||
|
| |||||||||
