Send InquiryConsistency Control Loop
Price 150000.00 INR/ Unit
Consistency Control Loop Specification
- Equipment Type
- Consistency Transmitters
- Operate Method
- Semi Auto
- Operating Voltage
- 220 Volt (V)
- Application
- Lab
- Features
- Efficient
- Hardness
- Yes
- Accuracy
- 100 %
- Usage
- Testing & Measurement
- Control Mode
- Manual
Consistency Control Loop Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Jaipur
- Supply Ability
- 20 Units Per Week
- Delivery Time
- 4 Week
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Domestic Market
- All India
About Consistency Control Loop

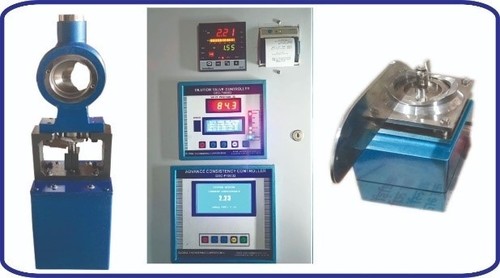

Consistency Control Loop
The Consistency Control Loop is a relatively slow loop in comparison to flow and pressure variation. It is difficult for most mills to eliminate header pressure fluctuations. The impact of these fluctuations on dilution flow rate, however, can be greatly reduced by adding a flow control loop to the basic strategy.
DESCRIPTION:
Consistency CONTROL LOOP is Micro controller based Consistency Transmitter is based on shear force principal. It is used to control pulp Consistency at wet end to maintain GSM of paper.
SALIENT FEATURES:
Mounted directly on the process pipe.
Compact design to suit less space.
Study design for high durability.
Suitable to 10 TPD to 200 TPD Capacity.
Preprogrammed Consistency Curves.
Single Blade for all pulp furnish.
High measuring accuracy and reproducibility.
Completely SS 316 construction.
High quality Electronic module for various controls.
Precisely Machined as per standards.
No Maintenance with single point calibration.
Easy installation and economic in cost.
Can be provided with Electronic panel.
TECHNICAL SPECIFICATION:
| Specifications | Range |
| Consistency Range: | 2% - 10% |
| Span: | 100 - 10,000 gm |
| Pulp Temp: | 32o 200 o F |
| Repeatability: | 0.3% of full Scale |
| Supply: | 240 V AC/20 V DC |
| Input: | 4-20 mA |
| Feedback: | 4-20 mA |
| Material of Construction | |
| Vetted Part: | SS-316 |
| Mounting Gasket: | Viton |
| O-Ring: | Viton |
| Mounting Saddle: | SS-316 |
| APPLICABLE STANDARDS :
| OPTION: As per Customer requirement | ||||||||
|
| |||||||||
