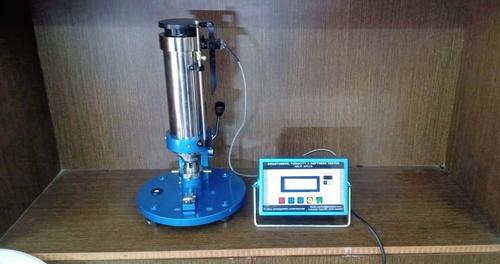

Smoothness & Porosity Tester (Gurley Type)

About Smoothness & Porosity Tester (Gurley Type)

Smoothness,Porosity & Softness Tester measures average Smoothness, Porosity andSoftness of paper and films by determining the time necessary for a certainvolume of air to flow through the inserted sample, under a uniform pressure.

Effectivearea of Porosity: 645.16 mm2

Contactarea of smoothness: 645.16 mm

ContactPressure smoothness:  0.21 Kg/cm

Softnesscontact area:  645.16 mm

SteelPlug - Height approx.: 5/100 mm (100cc of air flows out in 10 sec.)

DESCRIPTION:

Smoothness, Porosity & Softness Tester measures average Smoothness, Porosity and Softness of paper and films by determining the time necessary for a certain volume of air to flow through the inserted sample, under a uniform pressure. Air is forced downward at a low uniform pressure through an open tube to the upper orifice plate against which the sample is clamped. Each 50cc of air is marked and the test consists of timing the amount of air used in any three ways listed below:

Smoothness Test    :  Lateral flow between several sheets.

Porosity Test           :  Rate of flow through one square inch.

Softness Test          :  Rate of flow over the surface.

SALIENT FEATURES:

  Inner cylinder of light metal with top of Chromium Plated Brass.

  Outer cylinder of Chromium Plated Brass.

  Built-in leveling base.

  Provided with Electronic Self-Starting Timer.

  User-selectable measuring volume.

  Self-aligning clamping plate of stainless steel with ground top surface.

  Rubber Gasket for air tight sealing for sample.

  Provided  with the ring mark for measuring air leakage through the specimen

  Support spring for the inner cylinder in the raised position.

TECHNICAL SPECIFICATION:
