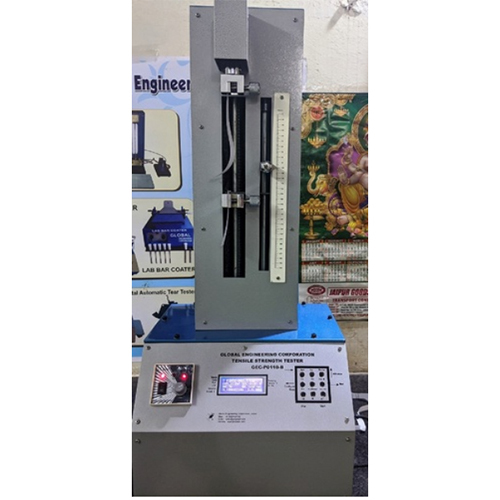

Send InquiryTensile Strength Tester (Microprocessor Based)
Price 125000.00 INR/ Unit
Tensile Strength Tester (Microprocessor Based) Specification
- Application
- Industrial
- Color
- Grey
- Port Size
- Electric
- Voltage
- 220 Volt (v)
- Machine Weight
- 140 Kilograms (kg)
Tensile Strength Tester (Microprocessor Based) Trade Information
- Minimum Order Quantity
- 1 Set
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 20 Sets Per Week
- Delivery Time
- 4 Week
- Main Domestic Market
- All India
About Tensile Strength Tester (Microprocessor Based)
DESCRIPTION:
Tensile Strength Tester determines the Tensile Strength and Stretch at break of the Paper, Paperboard, Films, Foils, Rubber, Textiles, Polyesters Yarn plastics etc.
The Tensile Tester is a bench mounted electrically operated machine to determine force per unit width required to break a specimen (tensile strength) and the percentage elongation at break point (elongation). The test is performed using the constant rate of elongation method.
Measuring Unit: Breaking force in Kgf, Lbf and N.
SALIENT FEATURES:
Imported Load Cell & DC Motor.
Complete with memory for retaining peak value, automatic or normal zero setting.
Single push button operation activates an automatic test cycle determining rapidly tensile strength and elongation etc.
Overload protection, Auto Calibration & Digital display.
Changeable peak detection level for different test.
Available in measuring range of 1 gm to 1000 kgf.
Accuracy 1% of measured value.
A reliable, easy to use and cost effective model.
TECHNICAL SPECIFICATION:
| Measuring Result : | Individual results of Tensile Strength, Stretch, Elongation & Breaking Length. |
| Capacity : | 0-200 N |
| Measuring Range : | Stretch at break 0-70% at clamping length 100 mm. |
| Clamps : | 15mm or 25 mm. |
| Clamping Length : | Selected. |
| Pulling Speed : | 1-99 mm/ min (0-04-4.0/min). |
| Accuracy : | 1% of reading down to 10% of the load cell capacity. |
| Resolutions : | 0.025% of nominal load cell range and 0.1 mm in elongation measurement. |
| Analog output : | Force Value 0-10 V |
| Power Supply : | 1 Phase. |
| APPLICABLE STANDARDS : TAPPI T- 404, T- 494, IS 1060,IS 4006 (part II) 1972, ISO 1924/2, SCAN P 38, BS 4415, CPPA D 34 | OPTION: As Per Customer Requirement | ||||||
| |||||||
