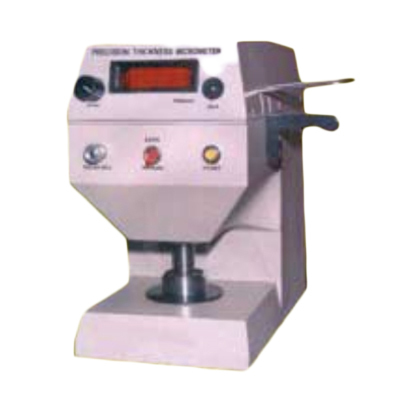

Send InquiryThickness Micrometer
Price 93000.00 INR/ Number
Thickness Micrometer Specification
- Product Type
- Measuring Equipment
- Equipment Type
- Measuring Equipment
- Application
- Industrial
- Usage
- Industrial measurement of material thickness
- Machine Weight
- 28 Kilograms (kg)
Thickness Micrometer Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash Advance (CA)
- Supply Ability
- 20 Per Week
- Delivery Time
- 4 Week
- Main Domestic Market
- All India
About Thickness Micrometer
DESCRIPTION:
Precision Thickness Micrometer is used for rapid and accurate measurement of thickness of paper, board and plastics. The Thickness of sheet is measured as the distance between two circular plane surface under a sturdy pressure 1Kg/cm.
SALIENT FEATURES:
Measuring spindle with constant lowering speed.
Hardened and lapped measuring face.
Provided with Mitutoyo (Japan) make add-on Optical.
It is Motorized, compact, sturdy, easy to use and push the button operation and digital display with linear variable differential transformer.
Reading Resolution 0.001 mm and Accuracy 0.01 mm.
TECHNICAL SPECIFICATION:
| TEST AREA: | 2 10 CM2 |
| Steady Pressure : | 1 Kg/cm2 (98.0 Kpa) |
| Throat Depth : | 75 mm |
| Measuring Range : | 0-20 mm |
| Resolution : | 1 m |
| Dead Weight Load : | Fixed |
| Lowering Speed : | Fixed & Controlled |
| PowerSupply/Consumption : | Single Phase 230/240 V, 25W |
| Dead Weight Load (Kg) | Surface Size (cm2 ) | Lowering Speed mm/s |
| 2 | 2 | 1 |
| 2 | 2 | 2 |
| 1 | 2 | 0.8 |
| 2 | 10 | 2 |
| 0.2 | 10 | 1 |
| APPLICABLE STANDARDS : TAPPI T 411,T426 M-46, FEFCO No. 3 ISO 534,DIN 53105 | OPTION: With Printer & PC interface | |||||||
|
| ||||||||
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Adhesive Testing Category
Internal Plybond Tester-Digital
Price 250000 INR / Number
Minimum Order Quantity : 01 Number, ,
Application : Paper, Paperboard and Packaging Material Plybond Strength Measurement
Power Supply : 220 V AC, 50 Hz
Machine Weight : Approx. 20 kg
Automation Grade : SemiAutomatic
Precision Thickness Micrometer (Dead Weight Type)
Price 22000 INR / Unit
Minimum Order Quantity : 1 Unit
Application : Precise Thickness Measurement for Paper, Films, Rubber, Plastics, Textiles, etc.
Power Supply : Not Required (Manual Operation)
Machine Weight : Approx. 12 kg
Automation Grade : Manual
Laboratory Seal Peal Strength Tester
Application : Seal, Peal, and Adhesion Strength testing of Packaging & Film
Power Supply : AC 220V, 50Hz
Machine Weight : Approx. 45 kg
Automation Grade : SemiAutomatic
Precision Thickness Micrometer
Price 22000 INR / Unit
Minimum Order Quantity : 1 Unit
Application : Precise measurement of paper, film, fabric, rubber and other flat materials
Power Supply : Not Required (Manual)
Machine Weight : Approx. 1.8 kg
Automation Grade : Manual
