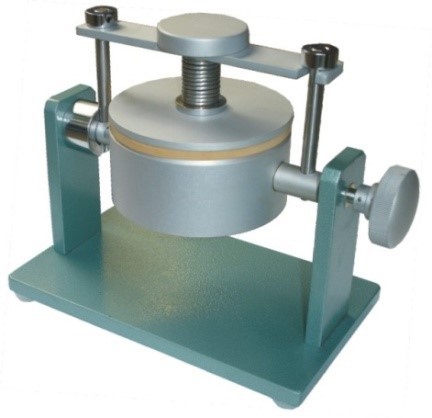

Send InquiryTilting Cobb Sizing Tester
Price 14000.00 INR/ Unit
Tilting Cobb Sizing Tester Specification
- Application
- Paper, paperboard, corrugated board
- Equipment Type
- Testing instrument
- Product Type
- Testing Equipment
- Operate Method
- Manual operation with tilting cylinder and couch roller
- Usage
- Water absorbency test (Cobb value)
- Machine Weight
- 40 Kilograms (kg)
- Test Speed
- Manual
- Control Mode
- Manual
Tilting Cobb Sizing Tester Trade Information
- Minimum Order Quantity
- 1 Set
- Payment Terms
- Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C)
- Supply Ability
- 20 Sets Per Week
- Delivery Time
- 4 Week
- Main Domestic Market
- All India
About Tilting Cobb Sizing Tester
DESCRIPTION:
Cobb Tester determines water absorption/penetration (Cobb Value) of paper, paperboard, corrugated fiberboard and other sheet materials. Cobb value is the Quantity of water in mgs absorbed by surface of 100 cm2 of the specimen on one side only in a specified time under a specified head of water. It measures the weight increase of a sample exposed to water for a given time.
The container mounted on a stand and filled with the specified amount of water that can be turned upside down to contact with water with a knob. After the test time has elapsed it is turned back and sample taken for analysis. The filled water can be used several times before it replenished. The lid is clamping by way of spring loaded finger grips.
The Test consists of a Test Apparatus, Roller & Blotting Paper.
SALIENT FEATURES:
Single Handed Automatic Clamping and Release.
Convenient spring loaded sample clamping system presses the cylinder against the sample on the rubber mat so that a leak proof seal is obtained.
Spring Loaded clamp for easy insertion and removal of specimen.
Adjustable pressure mechanism for necessary required clamping pressure to prevent water leakage during clamping.
Stainless Steel Hand Roller to ensure better consistency and reliability.
It also indicates the additive substance applied during process that improves printing quality and resistance to liquids.
TECHNICAL SPECIFICATION:
| Test Area: | 100 cm2. |
| Level Indication : | Indication for 100 ml on the inside of the cylinder. |
| Couch Roll : | Stainless Steel roller having a smooth surface Width 210 mm (8"), Diameter 88 mm (3.6") Weight 10 Kg. 0.5 Kg. |
|
| OPTION: Stop watch ,Graduated cylinder 100 ml, Balance 0.001 gram | ||||||||
|
| |||||||||
