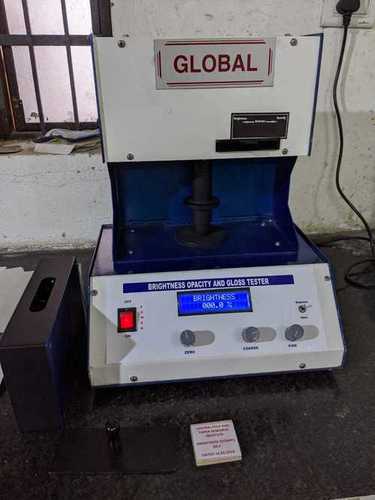

Send InquiryBrightness Tester
Price 74000.00 INR/ Unit
Brightness Tester Specification
- Application
- Industrial
- Product Type
- Testing Equipment
- Color
- White
- Power Supply
- Electric
- Machine Weight
- 34 Kilograms (kg)
Brightness Tester Trade Information
- Minimum Order Quantity
- 1 Number
- Payment Terms
- Cash Advance (CA)
- Supply Ability
- 20 Per Week
- Delivery Time
- 4 Week
- Main Domestic Market
- All India
About Brightness Tester
DESCRIPTION:
Reflectance Meter is a modern instrument for electronically measuring and digitally presenting the Brightness, Opacity & Gloss of the paper and other material by angular reflectance.
It gives precision measurements with less than 0.5 % FS deviation between the instruments.
SALIENT FEATURES:
Made with imported opticals.
It measures electronically &digitally presenting the Brightness of the paper and other similar material by angular reflectance
Large alpha-numeric display.
Single-button simplicity of operation.
TECHNICAL SPECIFICATION:
| Display System : | Digital Direct read out. |
| Measurement : | Brightness Opacity and Gloss. |
| Measurement Area : | 10 mm Dia. |
| Light Source : | 6V, 1 A. Tungsten Lamp. |
| Filters (kinds) : | Blue. Green, Amber |
| Sensor : | Selenium Photocell. |
| Brightness Search Unit : | Consist of deep blue gelatine filter #49, between photo voltaic cell, Infrared absorbing glass and source of light. |
| Opacity Search Unit : | Consist of green filter of the set of tristimulus filters. |
| Gloss Search Unit : | Consist Glass filter and measures gloss as specular reflectively at 75 angle of incidence. |
| Power Supply : | 230 5% volts, 50 cycles AC. Provided with a built in highly stabilized power supply to stabilize light intensity of the lamp. |
| APPLICABLE STANDARDS : TAPPI T519, T525, T527, T534, ISO 2469,2470,2471,ISO9416, ISO 5631.1, DIN 53 140, 53 145, 53 146, 53 147, 54 500 | OPTION: As Per Customer Requirement | ||||
| |||||
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Brightness, Opacity, Gloss & Color Testers Category
ERIC METER
Display Type : Digital LCD
Usage : Laboratory, Industrial
Control Mode : Digital
Machine Weight : 40 kg
Application : Testing rotational force characteristics
Temperature : 10 40
GLOSS TESTER
Display Type : Digital
Usage : Laboratory and industrial field use
Control Mode : Manual
Machine Weight : 7 kg
Application : Surface gloss measurement for paints, coatings, plastics, etc.
Temperature : 10C to 40C
Brightness Opacity, COLOR Tester SPECTROPHOTOMETER TYPE
Display Type : Digital highresolution display
Usage : Color, brightness, and opacity testing
Control Mode : Digital/Manual
Machine Weight : 20 kg
Application : Paper, Pulp, Board, Textile, and Plastics
Temperature : 15C 35C
Brightness Opacity COLOR Tester
Display Type : LCD or highresolution color display
Usage : Measure brightness, opacity, color of paper/board/tex
Control Mode : Digital microprocessor with preset routines
Machine Weight : 14.5kg Kilograms (kg)
Application : Testing brightness, whiteness (ISO/TAPPI), opacity, color (CIELAB)
