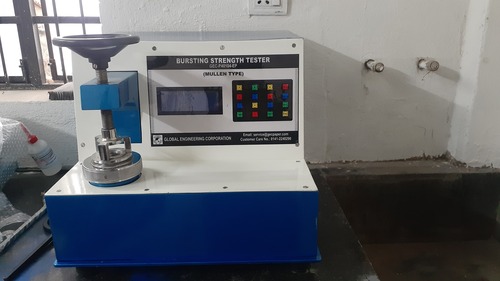

Bursting Strength Tester (DIGITAL Type) With Inbuilt Printer

About Bursting Strength Tester (DIGITAL Type) With Inbuilt Printer

Bursting Strength ofstrong Paper, Solid Fiberboard, Corrugated Board, Film, Tissue, Nonwovens,Textiles, Geotextiles, and other similar materials by submittingit to increasing uniform hydraulic pressure.

Digitaldisplay/printout of Bursting Strength, Burst Factors & Other parameters.

For Paper Model

SpecimenClamp-Upper Part: 30.50 mm

SpecimenClamp-Lower Part: 33.10 mm

PressureSpeed: 95 5 ml/min

For Solid Fiber Board/Corrugated Board

SpecimenClamp-Upper Part:    31.15 mm

SpecimenClamp-Lower Part:    31.15 mm 0.1mm.

PressureSpeed: For paper: 170 15ml/min.

DESCRIPTION:

Bursting Strength Tester measures Bursting Strength of strong paper and other similar materials by submitting it to increasing uniform hydraulic pressure. Bursting strength is a widely used measure of resistance to rupture in various materials. A test specimen is held between two circular clamps and subjected to an increasing pressure from a rubber diaphragm. The rubber diaphragm is expanded by a controlled hydraulic pressure until the test specimen ruptures. The bursting strength (B.F.) of the specimen is the pressure reading at the time of rupture. A Microprocessor control provides a high level of accuracy and excellent reproducibility of test results.

SALIENT FEATURES:

  Heavy Duty Cast Iron fully enclosed body.

  Single push button operation activates an automatic test cycle determining rapidly the bursting strength of paper or board.

  Digital display/printout of Bursting Strength, Burst Factors & Other parameters.

  Complete with Memory for retaining peak value, automatic Zero setting, overload & over protection facilities.

  Test result remains frozen till next operation.

  Pneumatic Clamping of Specimen.

  Changeable peak detection level for different materials.

TECHNICAL SPECIFICATION:
