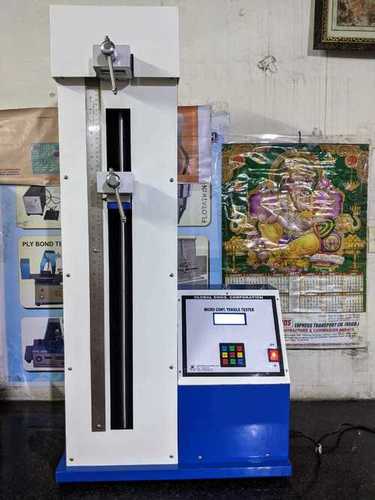

It is a highly specialized qualitycontrol instrument specifically developed to evaluate the interfacial adhesionproperties of flexible packaging material, coated packaging films and similarmaterials.

Capacity:100 Kg

LeastCount: 1 gm

TestSpeed: 100 mm/min / 254 mm/min / 300 mm/min

Power Requirement: 0.5 kW 1 Phase, 50Hz

Precise Testing for Packaging Quality

Seal Peel Strength Tester is engineered to ensure the reliability of seals and adhesives in packaging materials. By enabling selectable peel angles (90/180) and compliance with major international standards, it supports rigorous quality control processes essential for manufacturing and laboratory environments.

Built for Safety and Convenience

Featuring automatic clamping, an emergency stop switch, and easy-to-use digital controls, this tester prioritizes operator safety and consistent results. Its intuitive interface, real-time data display, and compatibility with both USB and printer ports simplify documentation and reporting.

Robust Design for Diverse Laboratory Needs

Powder-coated mild steel construction, precise stepper motor drive, and standard accessories make it ideal for manufacturers, exporters, suppliers, and wholesalers. It's suitable for various humidity and thermal conditions (15C to 45C, 30%-80% RH), and allows up to three specimens to be tested simultaneously.

FAQ's of Laboratory Seal Peal Strength Tester:

Q: How does the Laboratory Seal Peel Strength Tester ensure accurate measurement of seal and adhesive strength?

A: The tester utilizes a microprocessor controller and digital LCD display to provide precise force measurements within a range of 0.1 N to 500 N. With an accuracy of 1% of the reading and a resolution of 0.01 N, these features ensure reliable assessment in compliance with ASTM F88, ASTM F904, and ISO 11339 standards.

Q: What types of packaging and film materials can be tested with this instrument?

A: This device is designed for seal, peel, and adhesion strength testing of various packaging materials and films. Specimen sizes can be customized, though the standard is 10mm x 100mm, making it suitable for manufacturers and laboratories handling diverse packaging applications.

Q: When should I use the emergency stop switch during testing?

A: The emergency stop switch should be engaged immediately if you observe any unusual operation, equipment malfunction, or potential safety risks during the testing process to quickly halt the machine and prevent damage or injury.

Q: Where can the Seal Peel Strength Tester be mounted and installed for optimal use?

A: This model is bench-top mounted and designed for laboratory environments. It should be placed on a stable, level surface within ambient operating conditions (15C to 45C, 30%-80% RH) to ensure accurate results and safe operation.

Q: What is the process for conducting peel angle tests using this equipment?

A: Users can select between 90 or 180 peel angle tests depending on the packaging specification. The standard clamps secure up to three specimens simultaneously, and the digital controls set the test speed (100 mm/min). The stepper motor ensures steady movement throughout the test stroke of 300 mm.

Q: How does the USB/RS232 data output feature benefit laboratory workflow?

A: The USB and optional RS232 interfaces provide flexibility in exporting test data for analysis, record-keeping, and integration with laboratory management systems, enhancing workflow efficiency and ensuring traceability.

Q: What are the key benefits of using this peel strength tester for packaging quality assurance?

A: Benefits include precise and repeatable testing, compliance with international standards, real-time digital display, instant data response, user safety features, and robust construction. These ensure improved quality control, reduced process variability, and confidence in packaging performance.
